Lecture 10_ Regulatory Motifs

Lecture 10: Regulator Motifs Discovery

Features

• turned on/off response to changing environment
• no direct addressing: genes contain sequences of motifs (tags)
• specialized protein (TF) recognize these tags
• motif has many different class (enhancer, promoter, splicing…)
• not limited to DNA sequences (spicing signals, Domains and epitopes at protein level, recurring patterns at physiological level…)

Regulator structure to recognize motifs

• proteins chemical properties can recognized DNA fregments (don’t need open DNA)
• 3D topology dictates specificity (fully constrained pos or ambiguous/degenerate pos)
• other types of recognition (micro RNA, Nucleosomes, RNAs structure)

Infomatics perspect of motif

• summary information
• integrate many pos
• measure of information

(generative model)

Challenges of motifs discovery

• short (6-8 bp), sometimes degenerate
• can contain any set of nucleotides
• Act at variable distance (upstream of downstream)

General thoughts of motifs discovery

• Two assumptions about the data
  • assume no pairwise correlations between bases (each base is independent) [the risk of overfitting data]
  • all motifs have fixed lengths

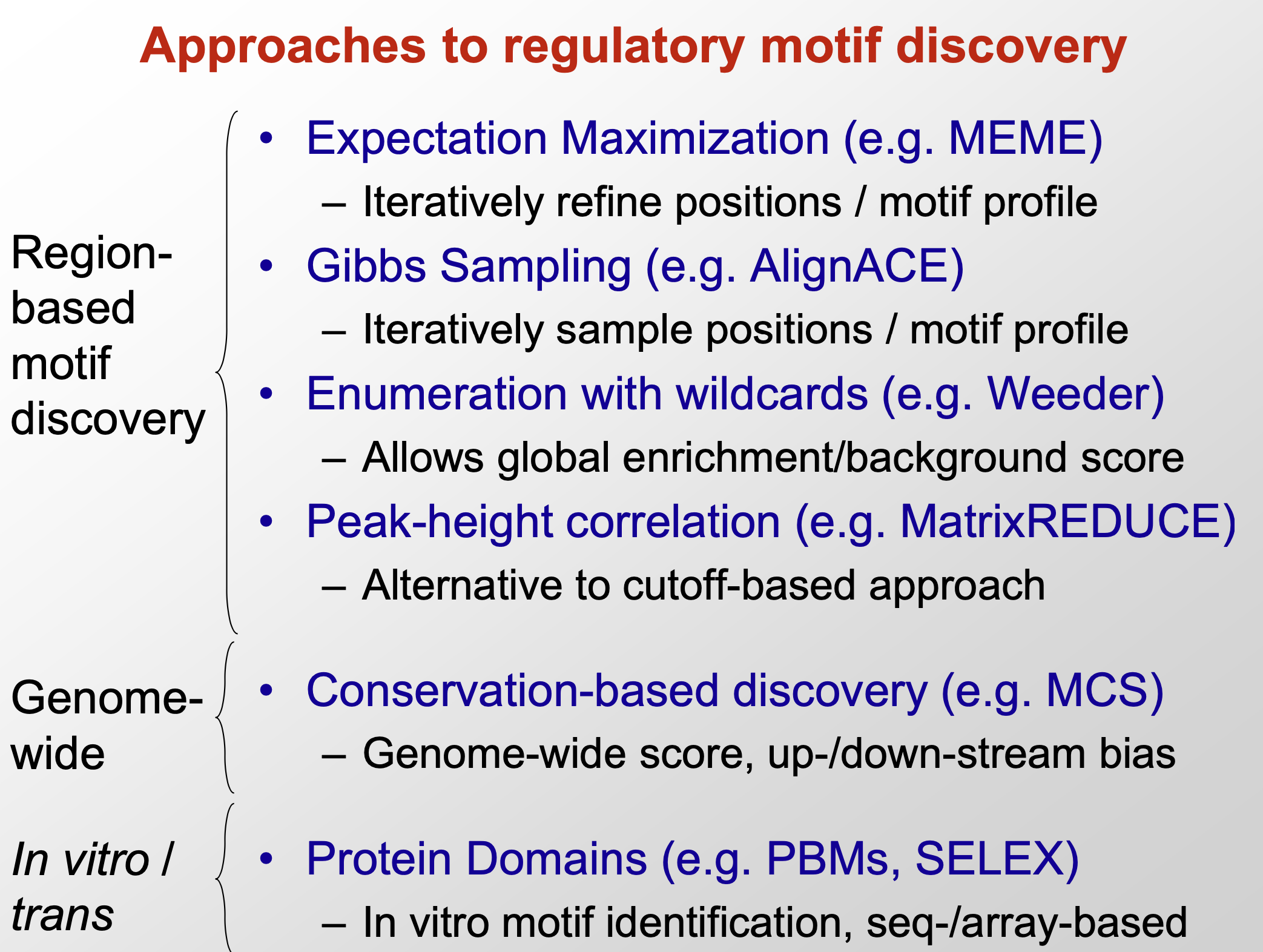

• methods for motif discovery
  • region-based (EM, Gibbs sampling, greedy algorithm…)
    • local alignment
    • find non-random seqences
    • reduce the search space by applying prior knowledge
    • conserved blocks
    • examine the requency of kmers
    • probabilistic methods
  • genome-wide (conservation-based)
  • In vitro/trans (protein domains): based experiments

Expectation maximization

Key idea in EM

• Starting positions<->motif matrix

Basic Iterative Approach:
Given: length parameter W, traning set of sequences
      	set initial value for motif
      	do
        	-> re-estimate starting-position from motif
        	-> re-estimate motif from starting-position
      	until convergence
      	return: motif,starting positions

• EM is a deterministic algorithm: dependent on the initial starting points, maybe converged in local max but not global
• rerun the algorithm with different initial starting positions to try reduce the chance of converging on local max (MEME-Multiple EM for motif Elicitation)

The E step: estimating $Z_ij$ from the PWM (profile matrix)

• Initialization (generate an initial probability weight matrix)
  • can initialize the PWM by choosing starting locations randomly
  • if there is 0 probability, it is generally good idea to insert pseudo- counts into your probabilities
  • keep a background distribution
• Expectation (generate a vector $Z_ij$)
  • calculate $Z_ij$using Bayes’ Rule (can’t comprehense clearly)

M step: Finding the maximum likelihood motif from starting positions $Z_ij$

• Maximization
• Repeat
  • to measure how much each element in the PWM changes after step max is a possible way to test whether the profile matrix has converged

Gibbs Sampling: Sample from joint $(M,Z_ij)$

• Sampling motif position based on the Z vector
  • Initialization
  • Remove
  • Update
  • Sample
  • Iterate
• More likely to find global maximum, easy to implement

De novo motif discovery

Motivation for de novo motif discovery

• TF and centric approaches are not comprehensive and are biased
• generally require TF (antibody to factor)
• De novo using conservation is unbiased, but can’t match motif to factor and require multiple genomes

Using genome-wide conservation

Validation of discovered motifs with functional datasets

Evolutionary signatures for regulatory motifs

De novo Dissection and confirmation of regulaory regions

Others

Possibly deprecated stuff

Comparing different Methods

OOPS, ZOOPS, TCM

Motif Representation and Information content
